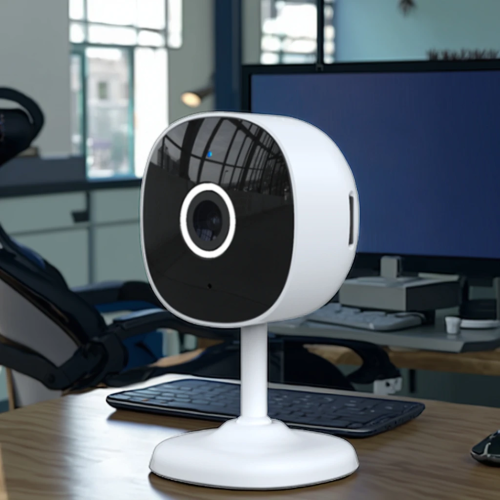

Indoor Card Camera support OEM ODM | Custom Indoor Surveillance Cameras
- Model
- YTS5
Item specifics
- Sensor Type:
- CMOS image sensor
- Lens Type
- Fixed‑focus lens Infrared Distance: 8‑10m
- Stream:
- Dual‑stream output
- Audio:
- Two‑way audio intercom
- Network Protocol
- ONVIF supported
- APP:
- Tuya, Smart Life
Review
Description
Custom Indoor Surveillance Cameras
YTS5Indoor Card Camera Detail:
|
Name
|
Size
|
Spec.
|
|
CPU
|
Specification
|
T31
|
|
Sensor imaging units
|
models
|
SC2336
|
|
CMOS Size
|
1/3-inch CMOS
|
|
Video Pixels | Effective pixels | 2304*1296 |
Lens parameters | Models | LK64-W130 |
Monitoring range | 4mm | |
Relative Aperture (Aperture) | F2.0 | |
Interface Type | M12*0.5 | |
FOV (Field of View) | 93.6° | |
resolution (of a photo) | 3MP | |
Number of lens layers | 1G3P | |
Night vision | night vision distance | 8-10 m |
Light Sensing Method | photosensitive diode | |
IR-CUT | Support | |
IR Light | 2 pcs 850nm infrared lamps | |
Wi-Fi | models | ATBM6012B |
standard | IEEE 802.11b/g/n | |
distance | 50M (unobstructed) | |
Speakers | Speaker function | support |
microphones | saturation (physics) | -36dB ± 2dB |
signal-to-noise ratio | ≥58dB | |
Storage Methods | cloud storage | support |
TF card storage | Support TF card, maximum 128G | |
Interfaces | Reset button | support |
Power connector | MIN_USB | |
wired network interface | / | |
Power adapter | Exports | USB 5V |
Certificate | Authenticate | CE 、FCC、ROHS |
Replacement (parts) | Expansion Screw Kit | support |
Warranty card, manual | support | |
General | operating temperature | -10℃ - 50℃ |
Storage temperature | -20℃ - 60℃ | |
Working humidity | Less than 95% (no condensation) | |
Other requirements | Installation | Wall mounting |
Packing List | Power adapter × 1 power cord × 1 camera × 1 manual × 1 installation kit × 1 |
